The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalization, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.
- MAX, MIN, AVG value, HOLD
- Audible alarm
- 13 selectable pressure units
- Data logging and software
- Rechargeable lithium battery
- LC colour display
- Date and time display
| Differential Pressure (kPa) Range | -250 ... +250 kPa |
| Differential Pressure (kPa) Resolution | 0.01 kPa |
| Differential Pressure (kPa) Accuracy | ±1 % FS |
| Differential Pressure (mbar) Range | -2.5 ... +2.5 bar |
| Differential Pressure (mbar) Resolution | 0.01 mbar |
| Differential Pressure (mbar) Accuracy | ±1 % FS |
| Units | inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O |

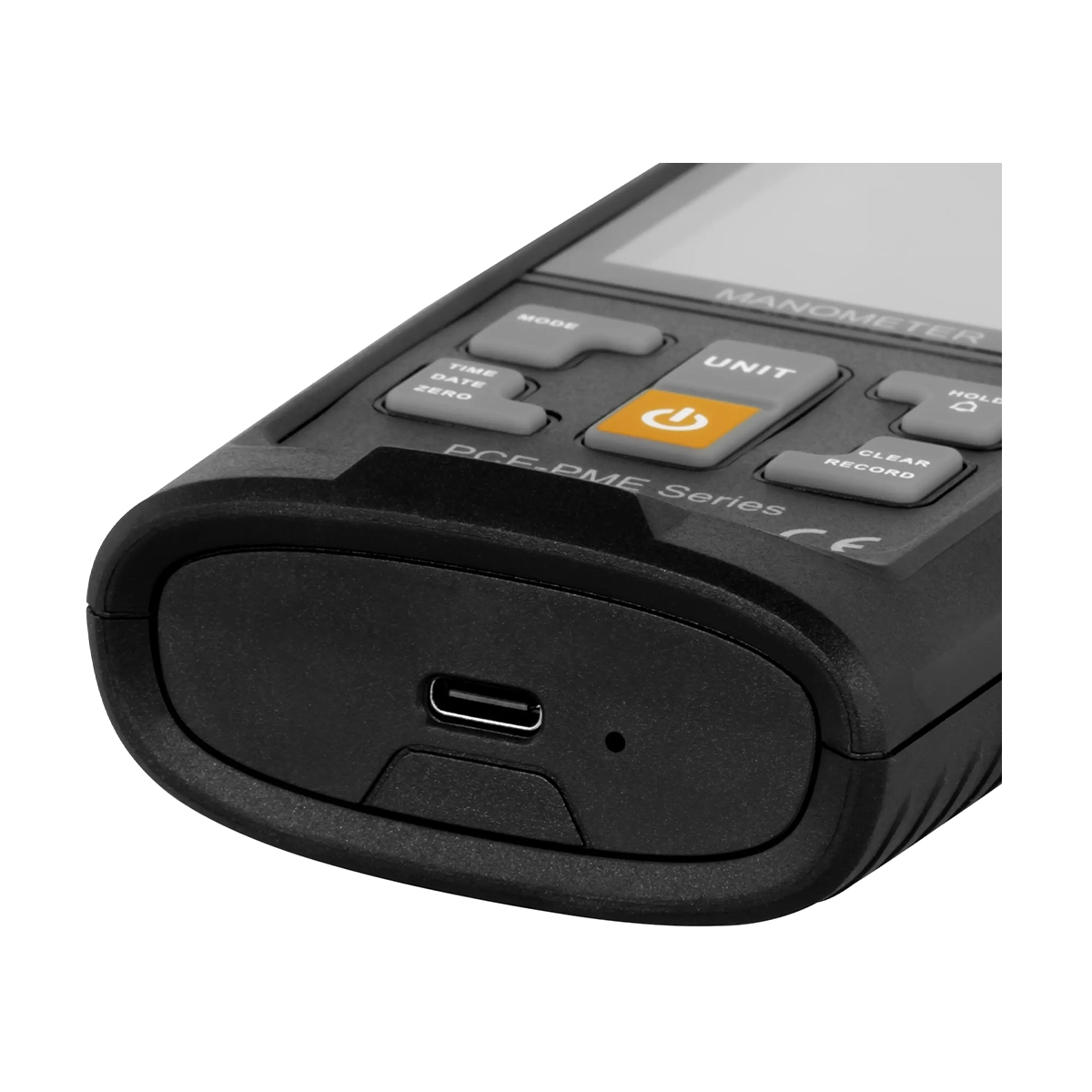

| Interface | USB-C |
| Overpressure | 3 kPa |
| Protection Class (Device) | IP20 |

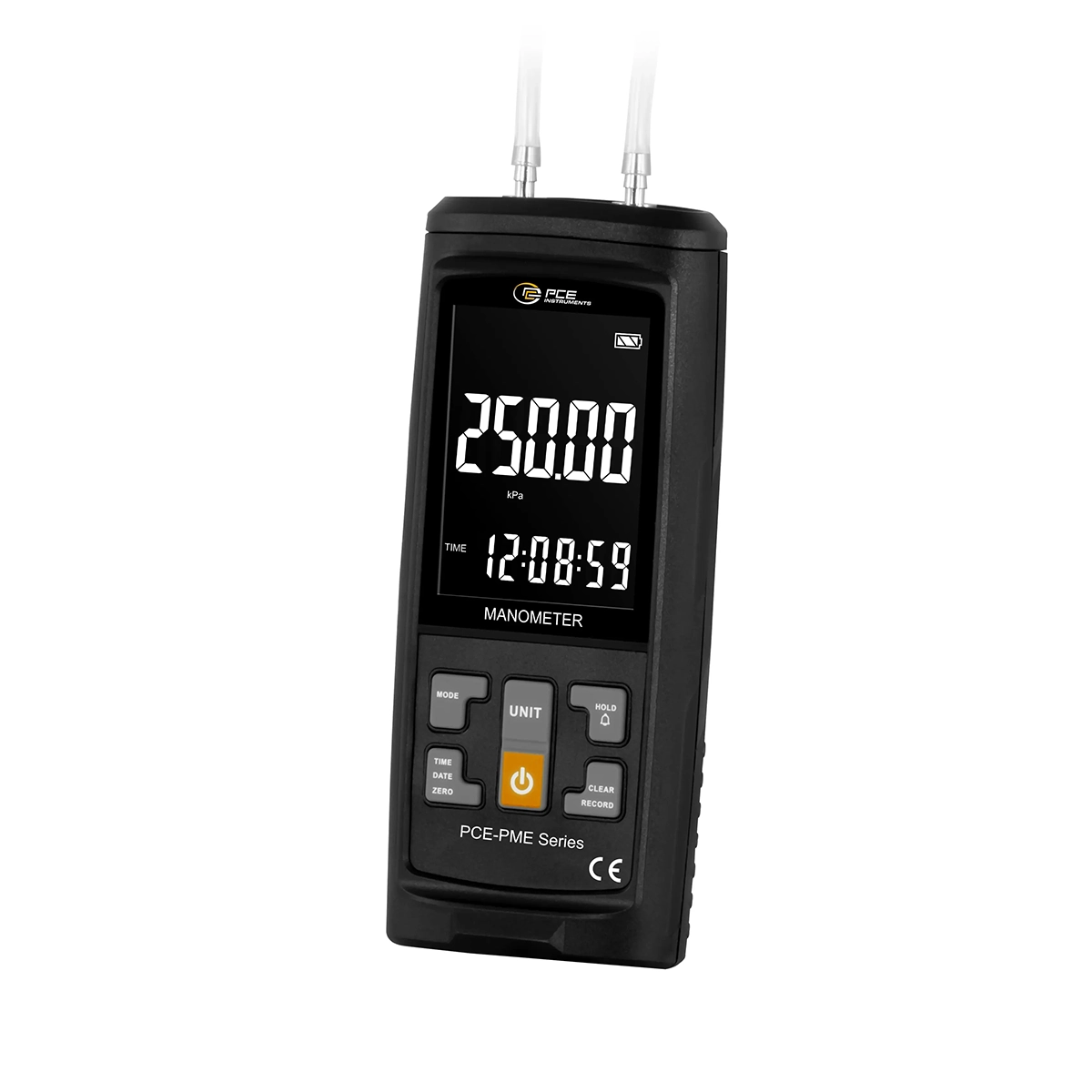

| Included Accessories | 1 x Manometer PCE-PME 250, 2 x hose approx. 25 cm, 1 x USB-A - USB-C cable (mains adapter not included), 1 x carrying case, 1 x PC software (in the download area), 1 x user manual |
