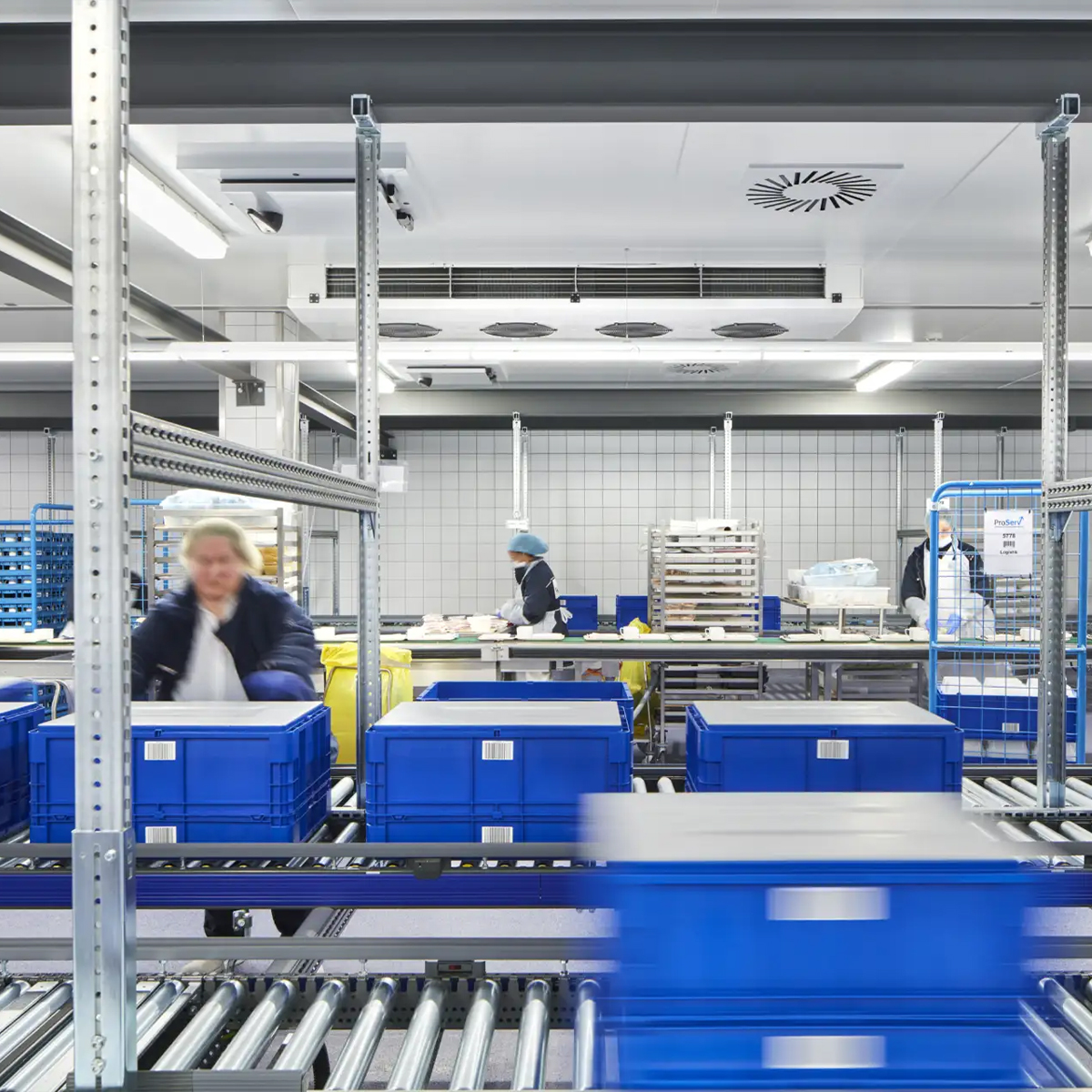

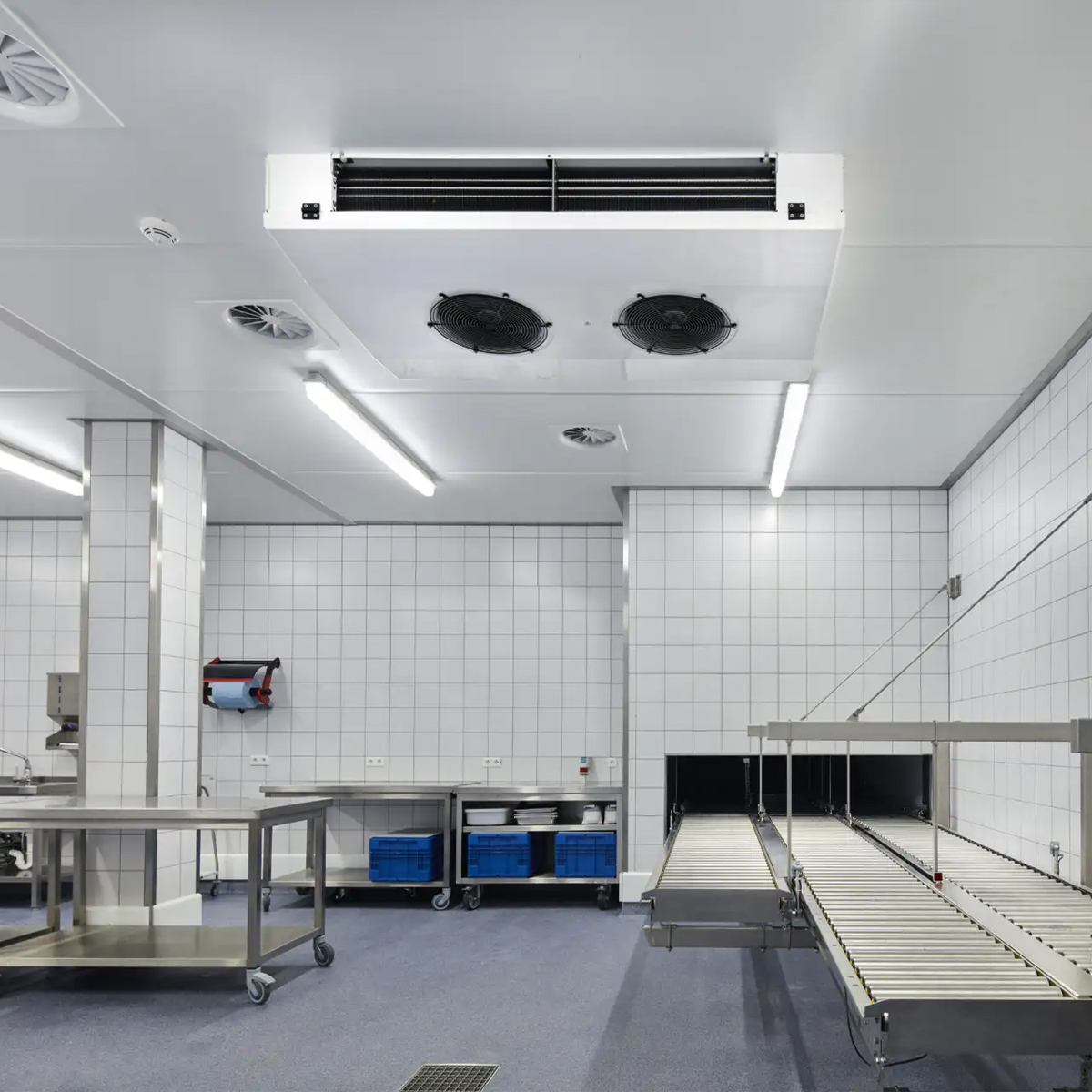

The Dual COMPACT Air Cooler by Güntner is designed for high-efficiency cooling in commercial refrigeration applications, suitable for indoor settings like processing rooms and showrooms. It offers dual discharge functionality and is compatible with various refrigerants and cooling principles. Featuring robust aluminum construction with an anti-corrosive coating, the unit ensures durability. It meets stringent hygiene standards, supported by an NSF-certified design. The hinged tray and accessible components allow easy cleaning and maintenance.
| Evaporator Type | Direct Expansion (DX) |
| Airflow | 4,355.00 m³ |
| Fan Quantity | 2 Piece(s) 1~230V 50Hz |
| Fan Speed | 1,340 min⁻¹ |
| Fan Power Consumption | 0.17 kW per motor |
| Fan Current | 0.73 A per motor |
| Noise Pressure Level | 56.00 dB(A) at 3.00 m |
| Noise Power Level | 78.00 dB(A) |
| Air Throw | Approx. 2 × 11 m |
| Energy Efficiency Class | ErP Compliant |
| Casing Material | AlMg, Powder-coated (RAL 9003) |
| Surface Area | 53.50 m² |
| Tube Volume | 6.8 l |
| Fin Spacing | 4.00 mm |
| Weight (Dry) | 73 kg |
| Max Operating Pressure | 32.00 bar |
| Inlet & Outlet Connection | Inlet: 22 × 1.00 mm, Outlet: 35 × 1.50 mm |
| Drain Connection | G1¼" (DIN ISO 228-1) |
| Accessories | Wiring to terminal box |
| Dimensions (L × W × H) | Length: 1776 mm, Width: 1026 mm, Height: 318 mm |
| Suspensions | 4 |
