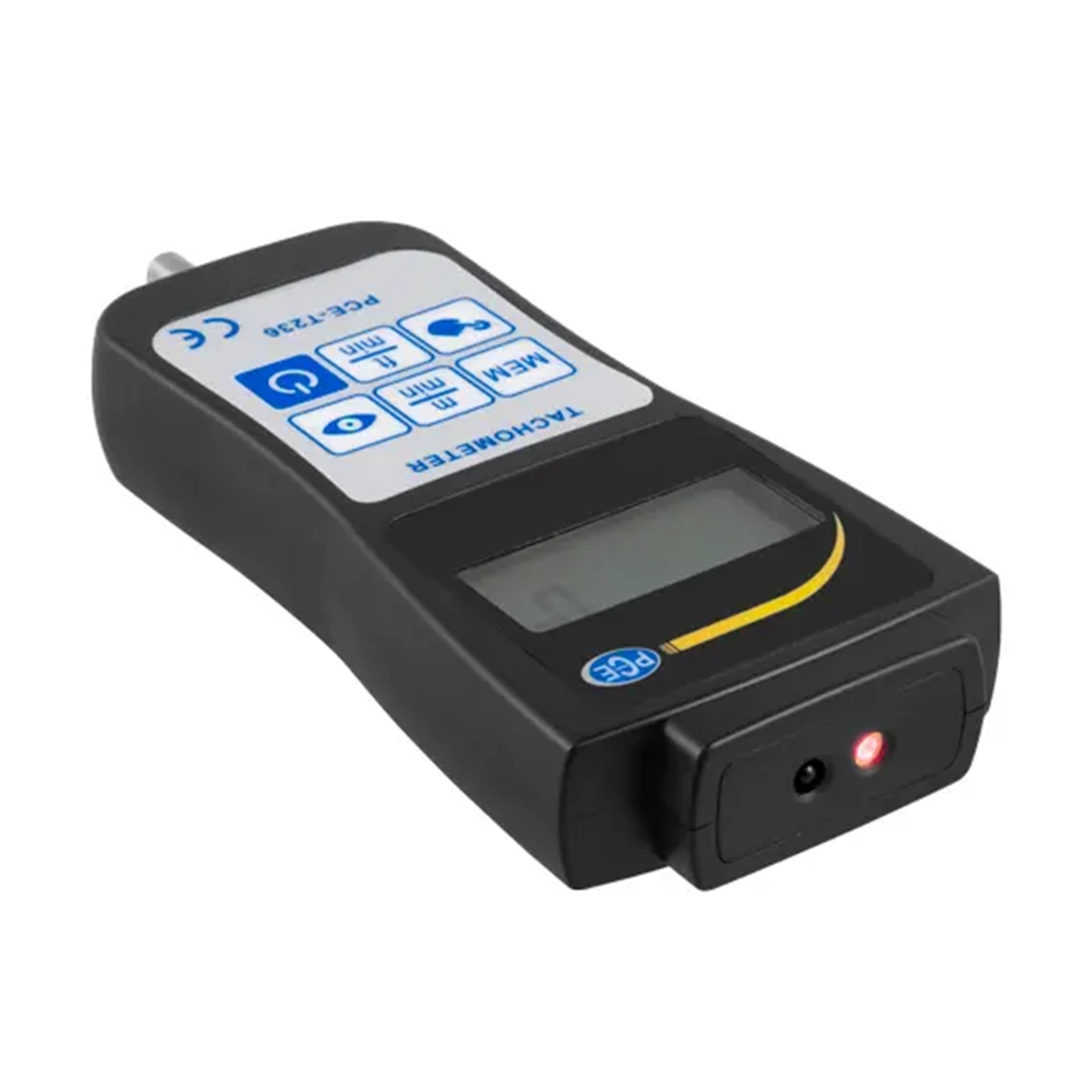

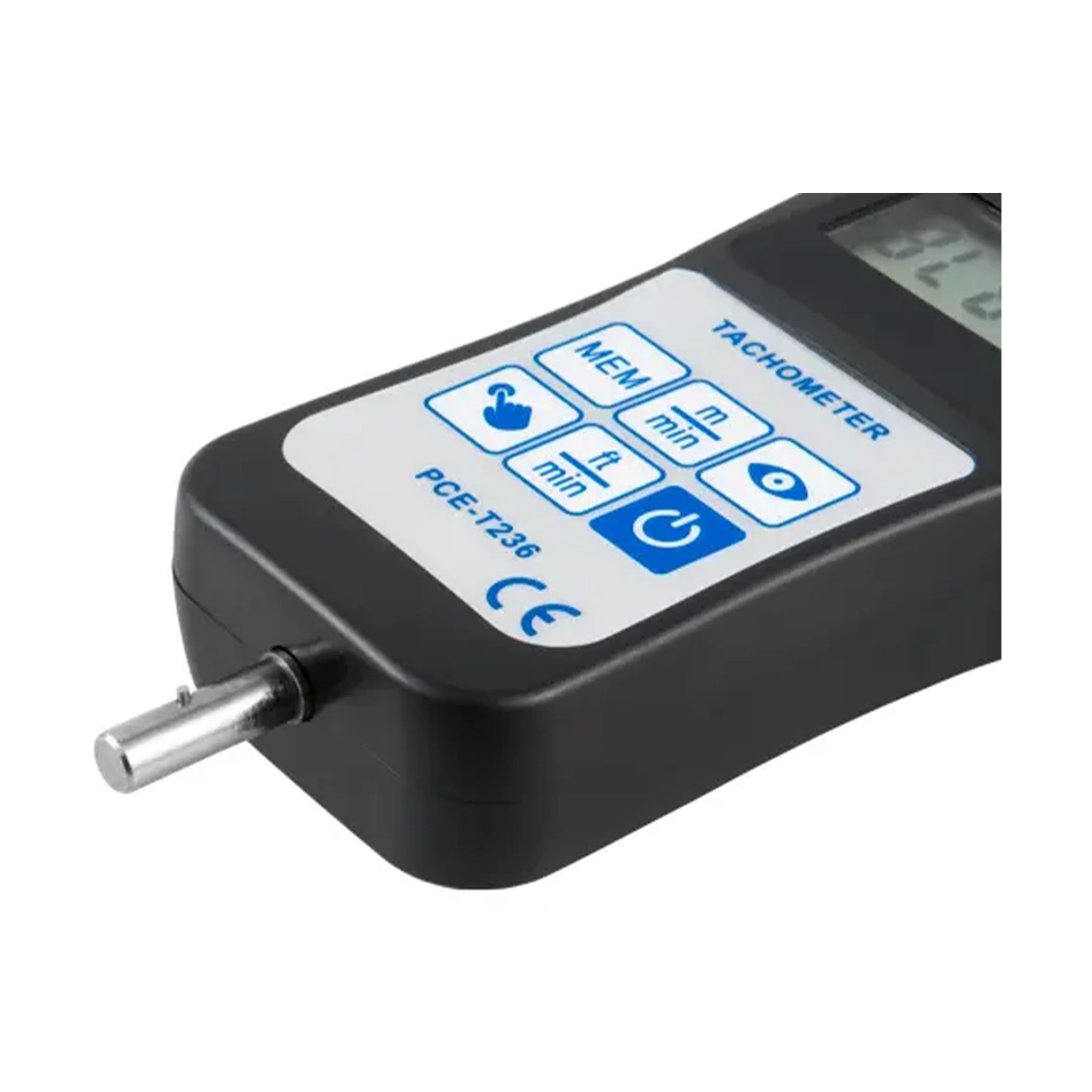

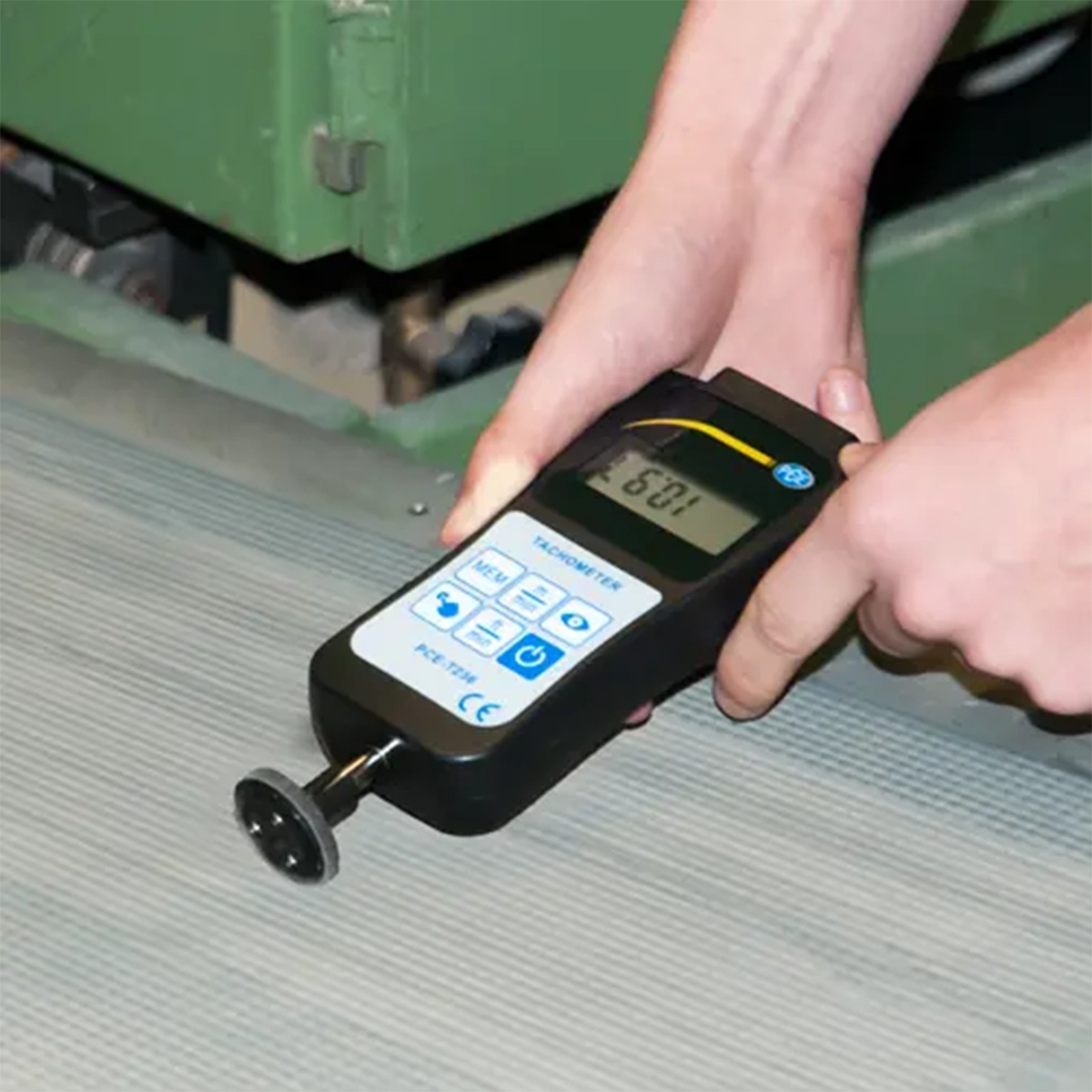

PCE-T236 is a digital handheld tachometer or rotation meter for both contact and non-contact measurement. This tachometer measures rotation speed as well as linear or surface speed, displaying units in rpm, m/min or ft/min.

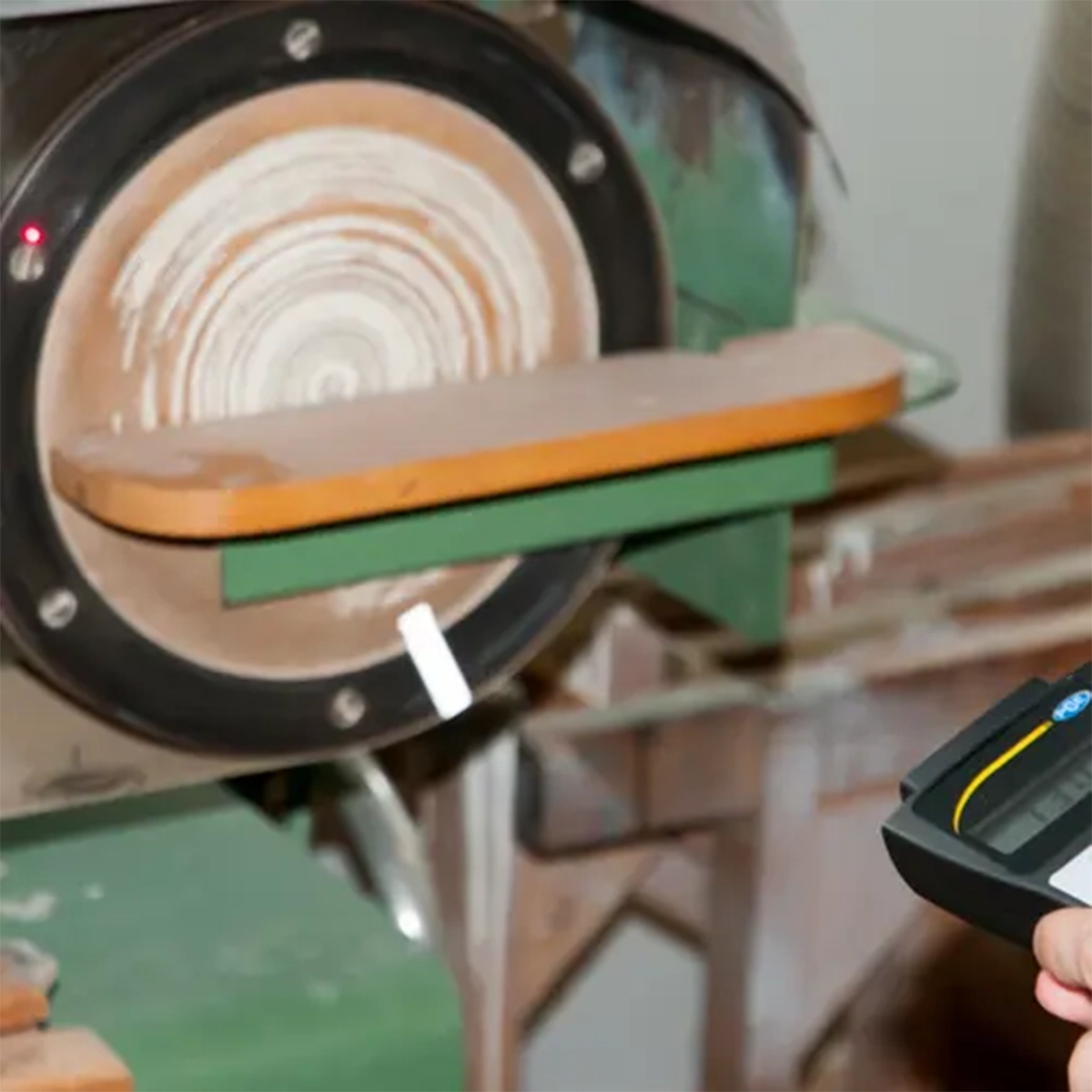

- For both contact and non-contact measurement

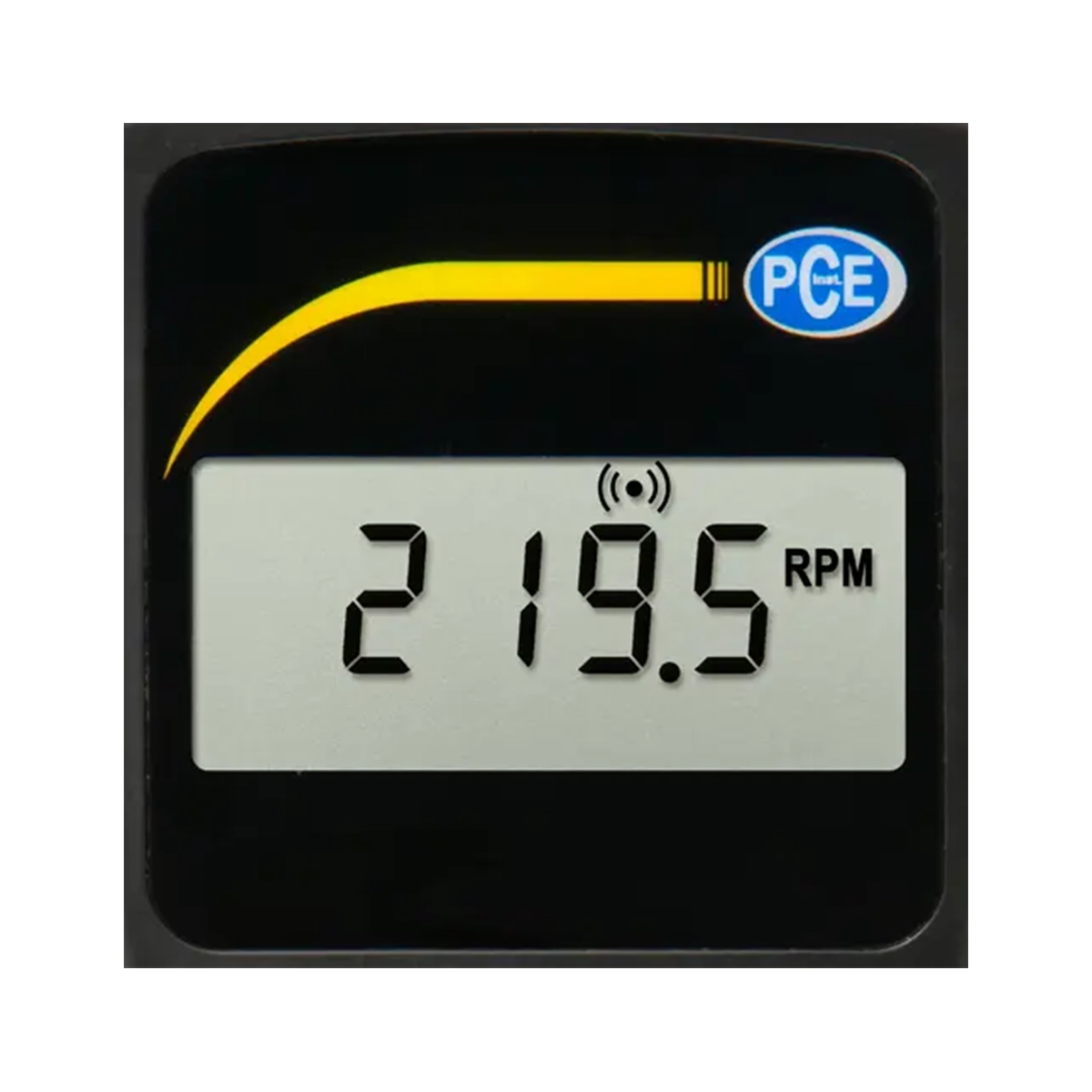

- Automatic rotation of LCD screen orientation
- Displays units in rpm, m/min or ft/min
- Memory saves minimum, maximum and last values
- Rugged heavy-duty ABS plastic enclosure ensures longevity
| Optical Measurement Range | 5 ... 99999 rpm |
| Contact Measurement Range | 0.5 ... 19999 rpm, 0.05 ... 1999 rpm, 0.2 ... 6560 ft/min |
| Optical Resolution | 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm |
| Contact Resolution | 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm 0.05 ... 99.99 = 0.01 rpm, Greater than 1999 = 0.1 rpm 0.2 ... 999.9 = 0.1 ft/min, Greater than 6560 = 1.0 ft/min |
| Accuracy | Less than 60000 rpm = ±0.05% fs , Greater than 60000 rpm = ±0.15% fs |
| Max. Distance for Optical Measurement | 300 mm / 11.8 in |
| Memory | Minimum, maximum and last values |
| Power Supply | 4 x 1.5V AAA batteries |

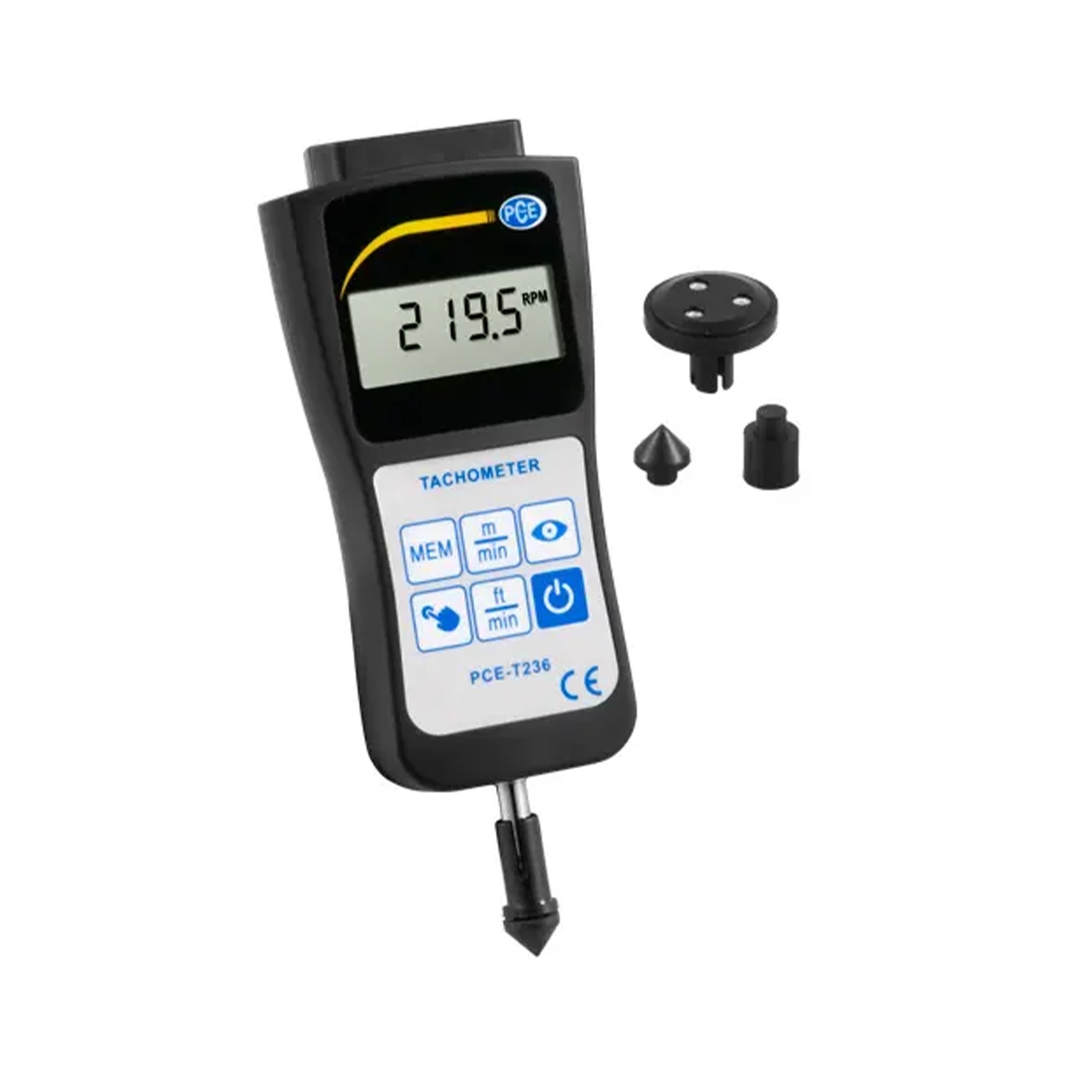

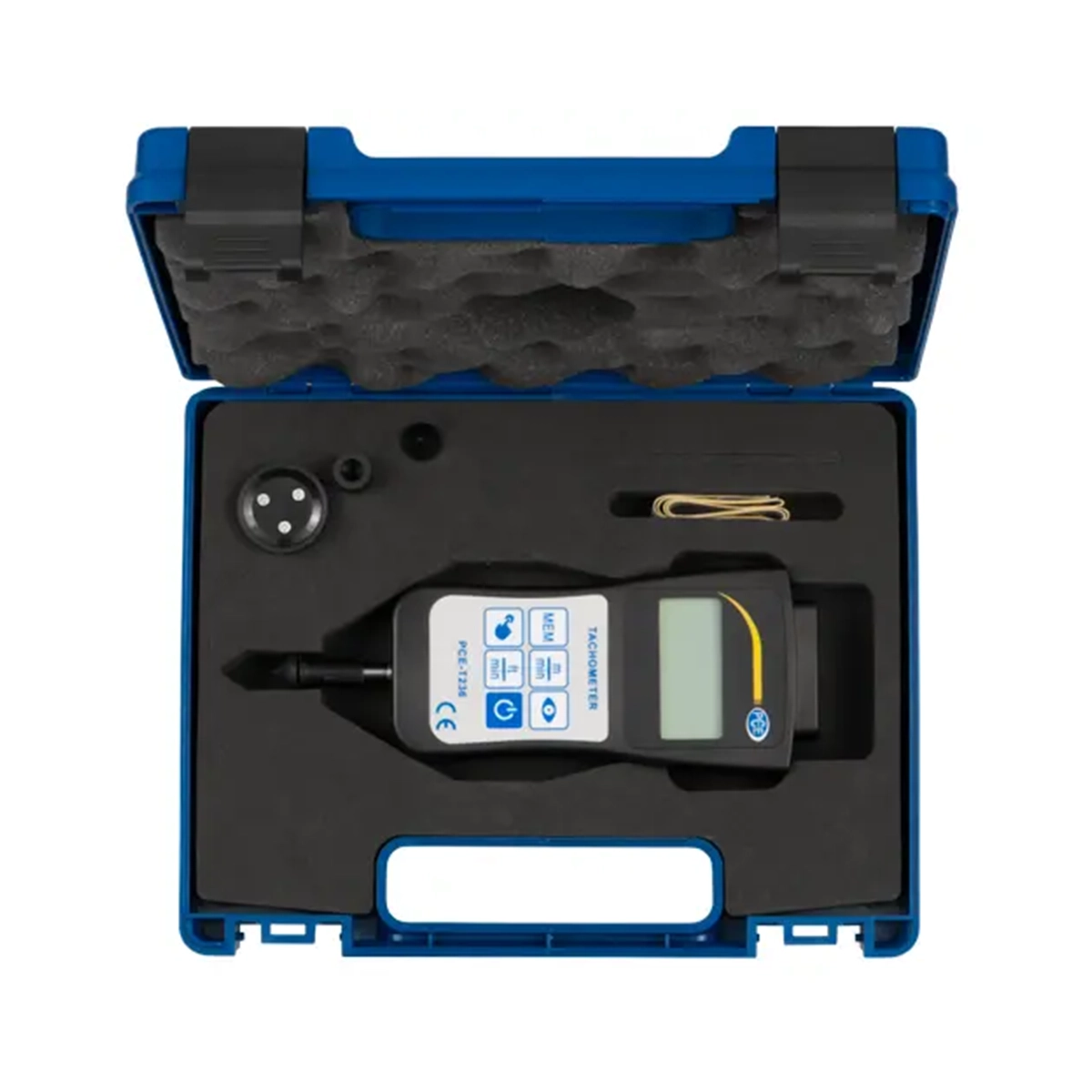

| Included Accessories | 1 x PCE-T236 Handheld tachometer, 1 x Conical mechanical attachment, 1 x Cylindrical mechanical attachment, 1 x Measuring wheel mechanical attachment, 1 x Roll of laser-reflective tape, 1 x Carrying case, 1 x User manual |
