MODEL: IR4053-10

Measure PV Insulation Resistance Safely, Accurately and Quickly

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

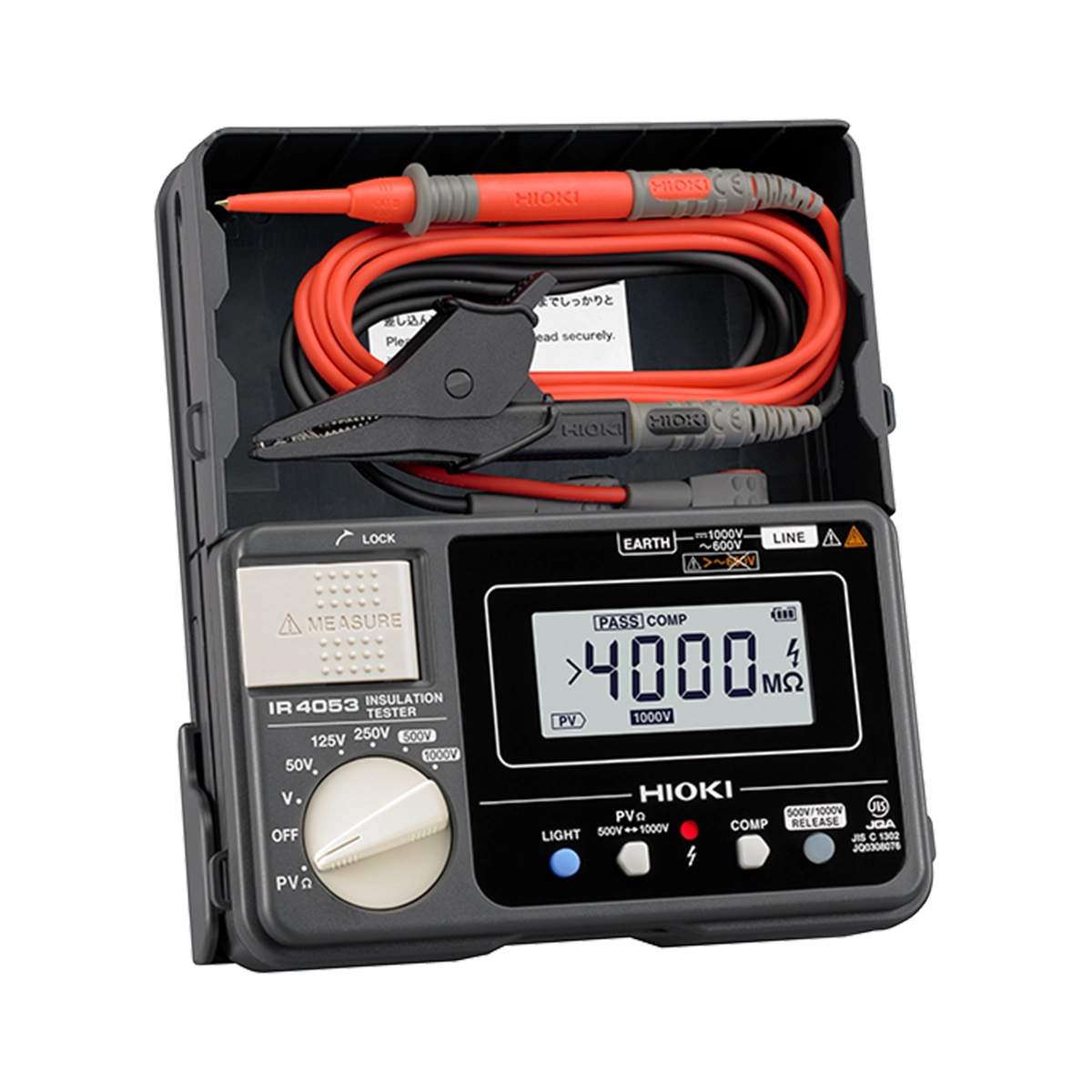

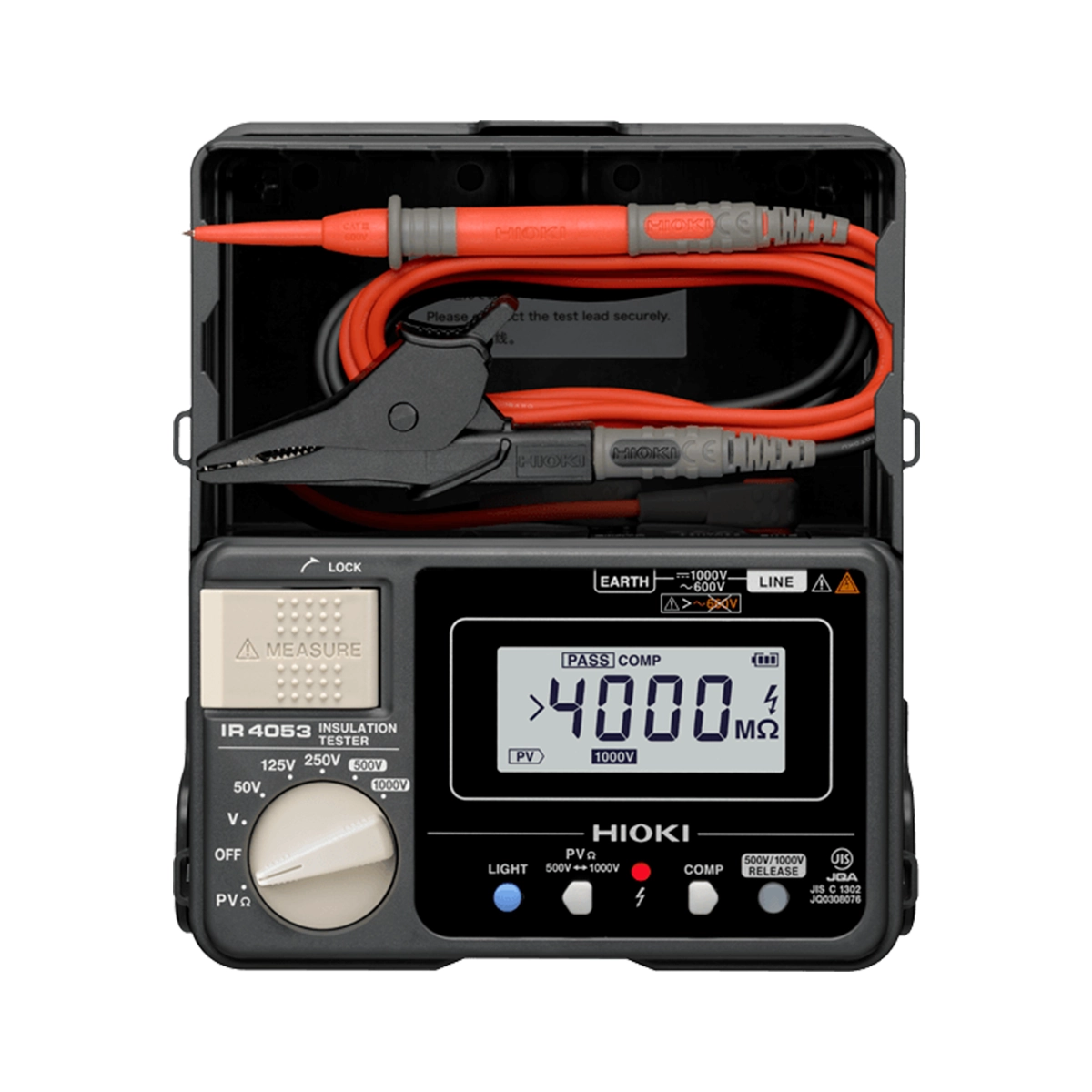

The Hioki IR4053 is a digital insulation resistance tester for photovoltaic generation systems. Measure insulation resistance accurate and safely without being affected by generated solar power and identify the value in just 4 seconds.

  • Measurement not affected by generating PV
  • Accurate and safe measurement without creating shorts
  • Displays measurement in 4 seconds
  • Comparator function provides PASS/ FAIL decisions at a glance
  • These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m
Rated output voltage 500 V DC 1000 V DC
Effective maximum indicated value 2000 MΩ 4000 MΩ
Measuring range/ Accuracy 0.200 to 500 MΩ / ±4% rdg. 501 to 2000 MΩ / ±8% rdg. 0.200 to 1000 MΩ / ±4% rdg. 1010 to 4000 MΩ / ±8% rdg.
Other measuring range / Accuracy 0 to 0.199 MΩ / ±2% rdg. ±6 dgt.

Basic specifications: Insulation resistance measurement

Rated output voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy 1st effective measuring range MΩ ±4% rdg. 0.200 to 10.00 ±4% rdg. 0.200 to 25.0 ±4% rdg. 0.200 to 50.0 ±4% rdg. 0.200 to 500 ±4% rdg. 0.200 to 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 1200 V DC (10 s)
DC voltage range 4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt. (Ranges in excess of 1000 V are not guaranteed for accuracy.)
AC voltage range 420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt. (Ranges in excess of 600 V are not guaranteed for accuracy.)
Display Semi-transmissive FSTN LCD with back lighting, Backlight
Response time Insulation resistance range: 1 second, PVΩ function: 4 seconds (based on in-house tests)
Other functions Live circuit indicator, automatic electric discharge, automatic DC/AC detection, comparator, drop proof, auto power save
Power supply AA alkaline batteries (LR6) ×4, Continuous operating time: Approx. 20 hours (based on in-house tests)
Dimensions and mass 159 mm (6.26 in) W × 177 mm H (6.97 in) H × 53 mm (2.09 in) D, Approx. 600 g (21.2 oz) (including batteries, excluding test lead)
Included accessories TEST LEAD L9787 ×1, Neck strap ×1, Instruction manual ×1, AA alkaline batteries (LR6) ×4
