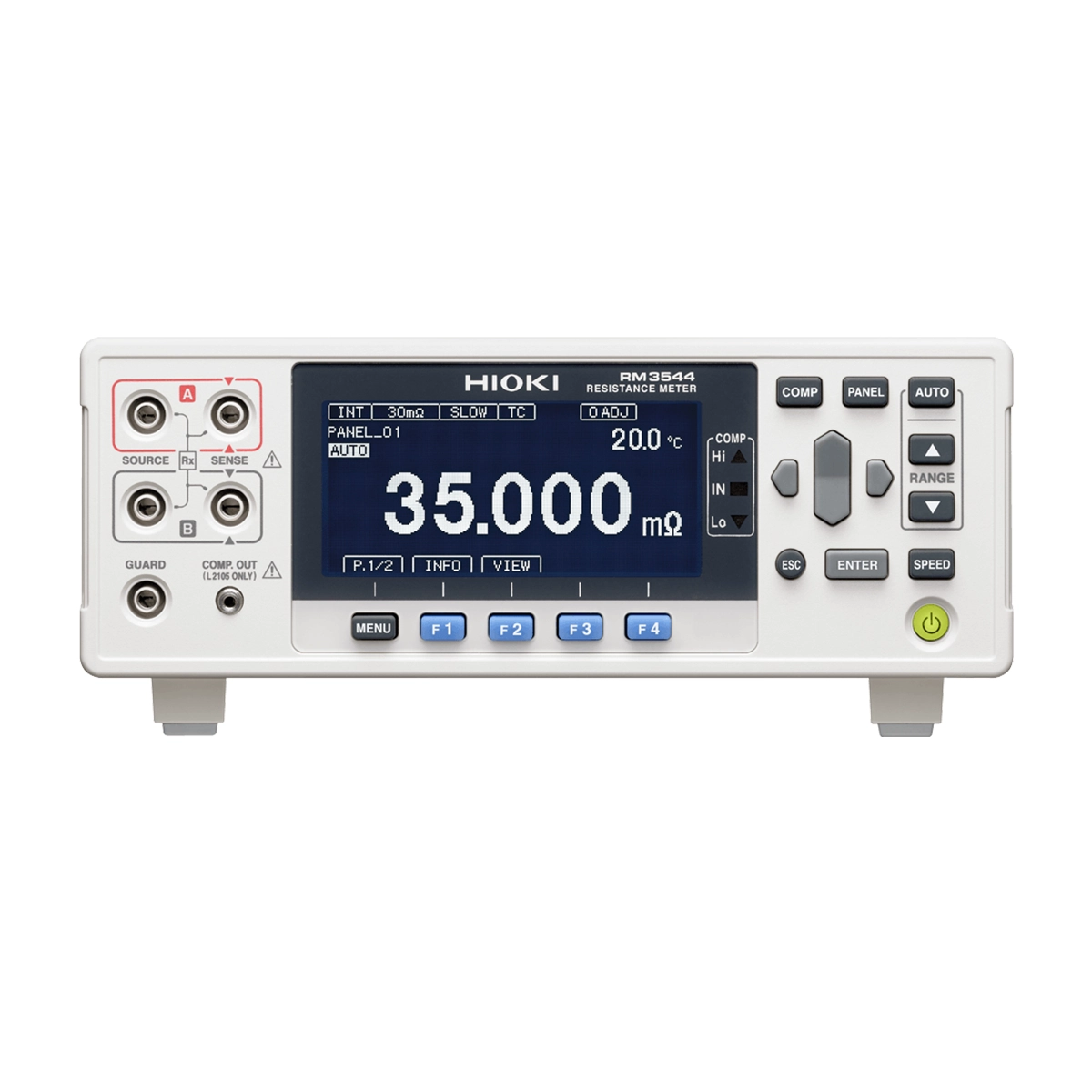

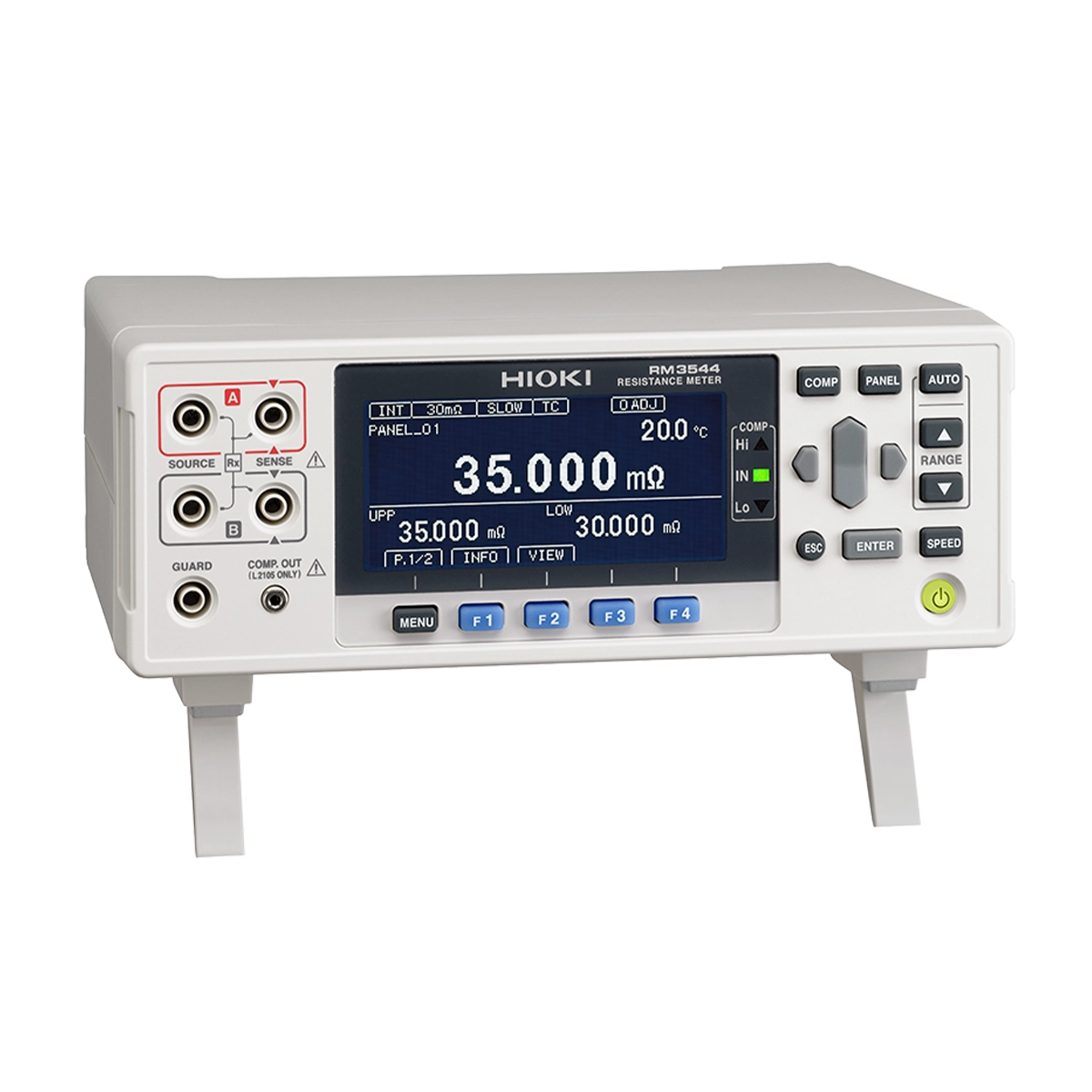

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3544 is easy-to-use resistance testers suitable for use on either manual or automated production lines for measuring the winding resistance of motors and transformers as well as the contact resistance of power relays, switches, and connectors.
| Resistance range | 30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
|---|---|
| Testing current | [at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC |
| Open-terminal voltage | 5.5 V DC max. |
| Temperature measurement | -10.0 °Cto 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy) |
| Measurement speed | FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms) |
| Display refresh rate | N/A |
| Functions | Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load |
| Memory storage | N/A |

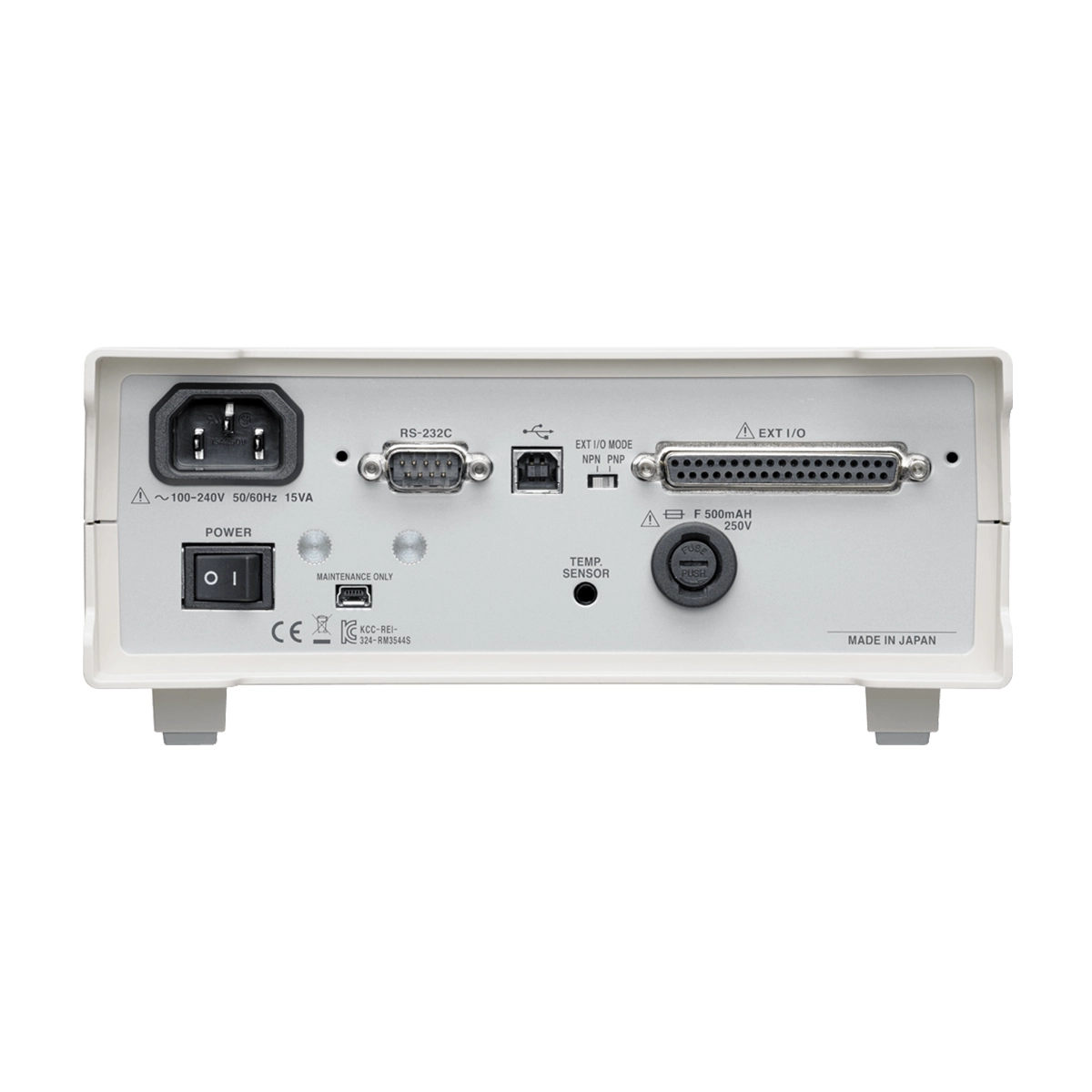

| Communication interfaces | [Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB Remote function, communications monitor function, data output function |
| Power supply | 100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA |
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D [RM3544] 0.9 kg (31.7 oz), [RM3544-01] 1.0 kg (35.3 oz) |
| Included accessories | [RM3544] Power cord ×1, Clip type lead L2101 ×1, Instruction manual ×1, Spare fuse ×1 [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT. I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1 |
