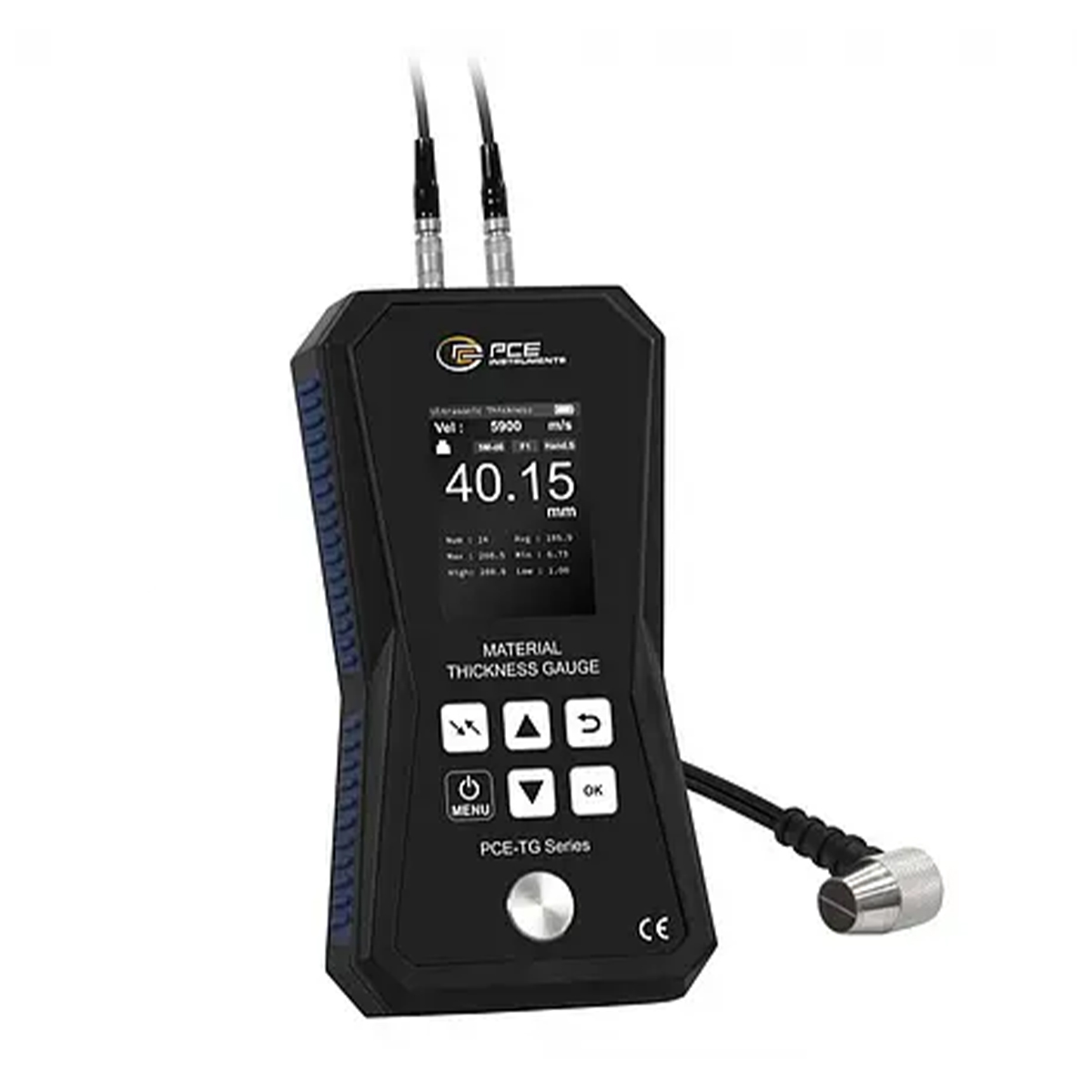

MODEL: PCE-TG 75A

Ultrasonic Thickness Gauges with data memory / adjustable sonic velocity / calibration reference mounted on the housing / material thickness measurement up to 225 mm / limit value alarm.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

The ultrasonic thickness gauges can measure material thicknesses up to 225 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the ultrasonic thickness gauges. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the ultrasonic thickness gauges can be used universally.

  • Measured value memory
  • Calibration reference on housing
  • Automatic switch-off
  • Material thickness measurement up to 225 mm
  • Battery status display
Material thickness – Measuring range 1 mm ... 99.99 mm (Resolution: 0.01 mm)
100 mm ... 225 mm (Resolution: 0.1 mm)
Accuracy ±0.5 % v. Mw. + 0.05 mm
Measurable materials Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes 30 mm
Units mm
Memory capacity 500 values
Sonic speed adjustable 1000 ... 9999 m/s
Protection class (device) IP52

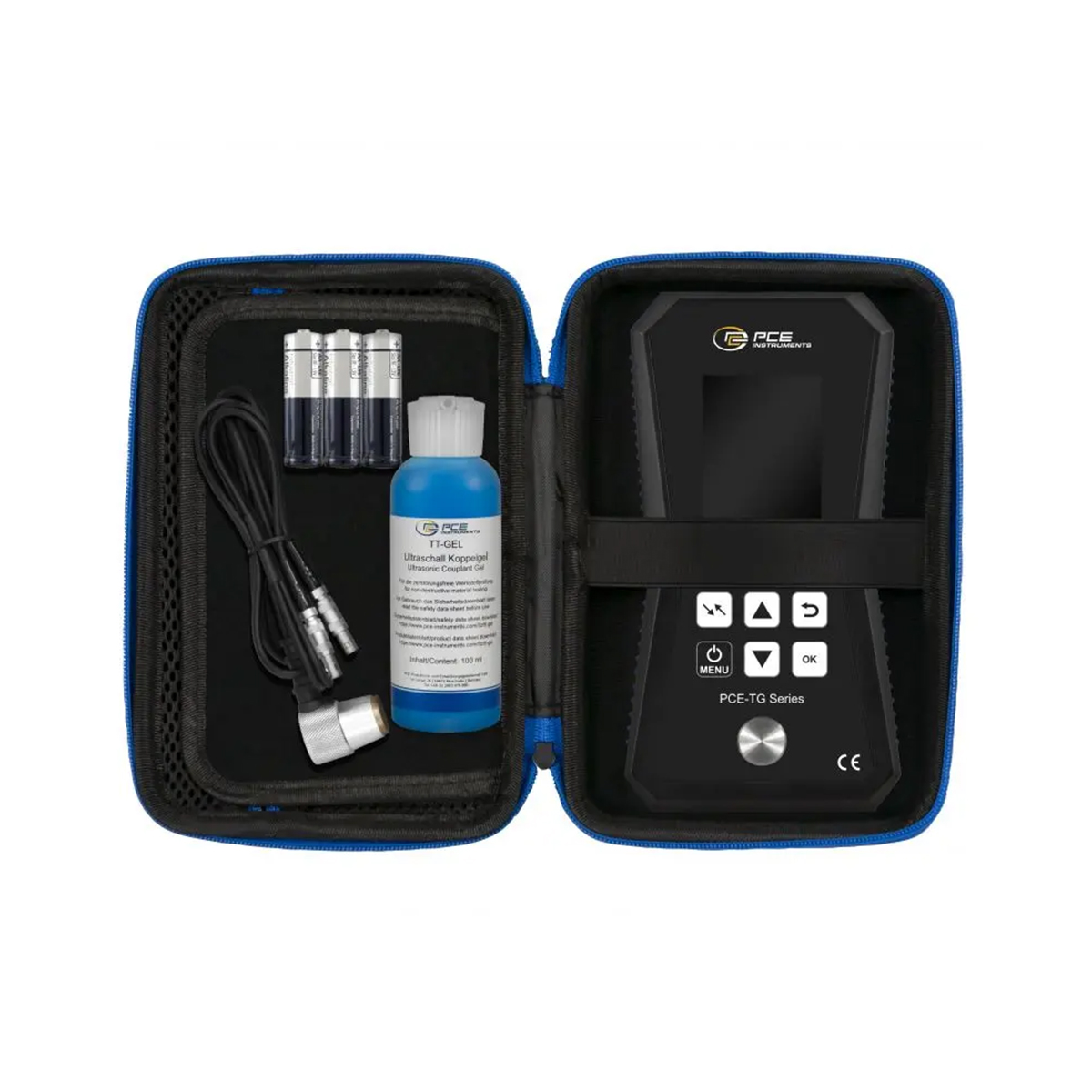

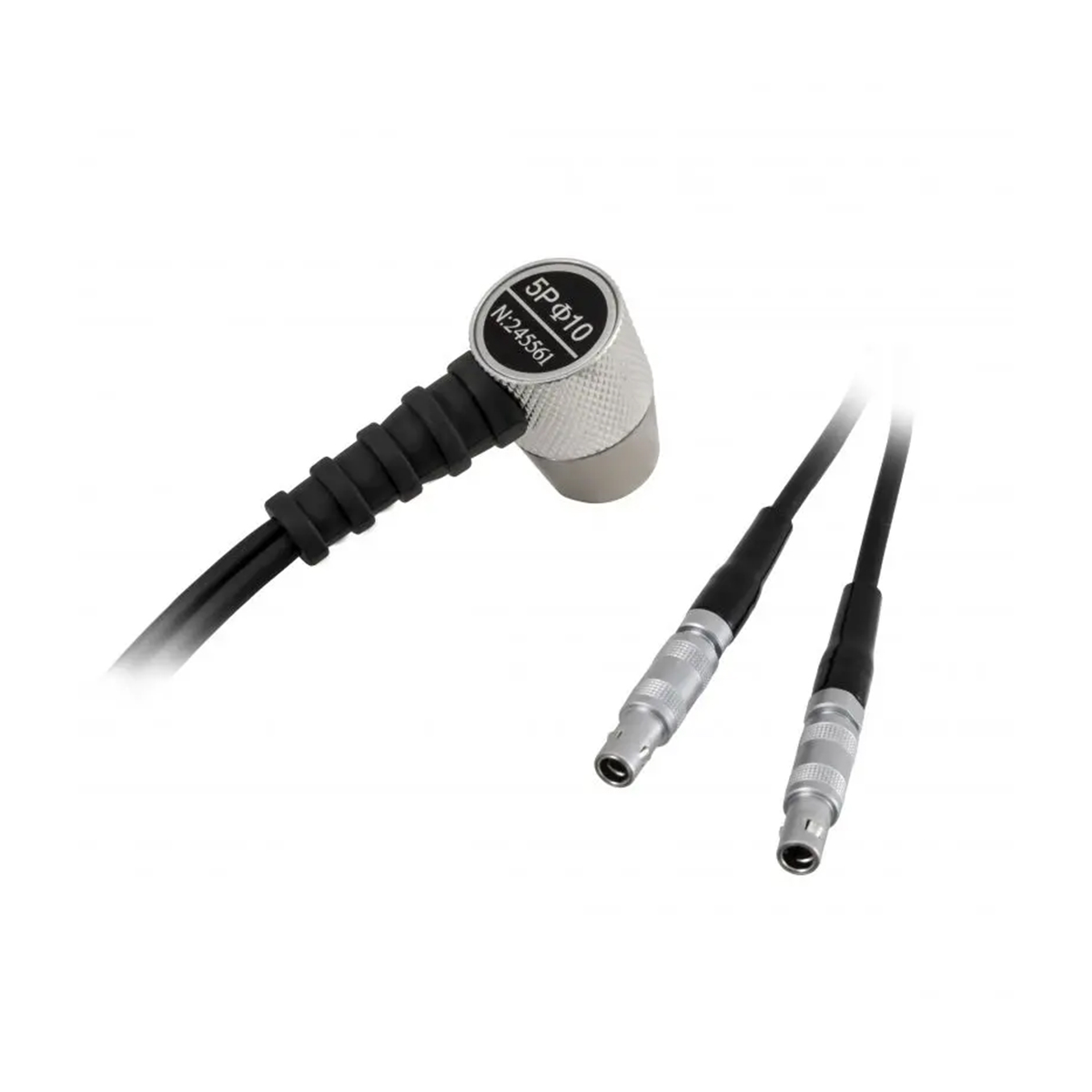

Included Accessories 1 x PCE-TG 75A ultrasonic thickness gauges, 1 x PCE-TG 5M10d sensor, 1 x coupling gel (TT-GEL), 1 x transport bag, 3 x 1.5 V AA batteries, 1 x quick start guide

Customer Reviews

Related Products
Add to wishlist

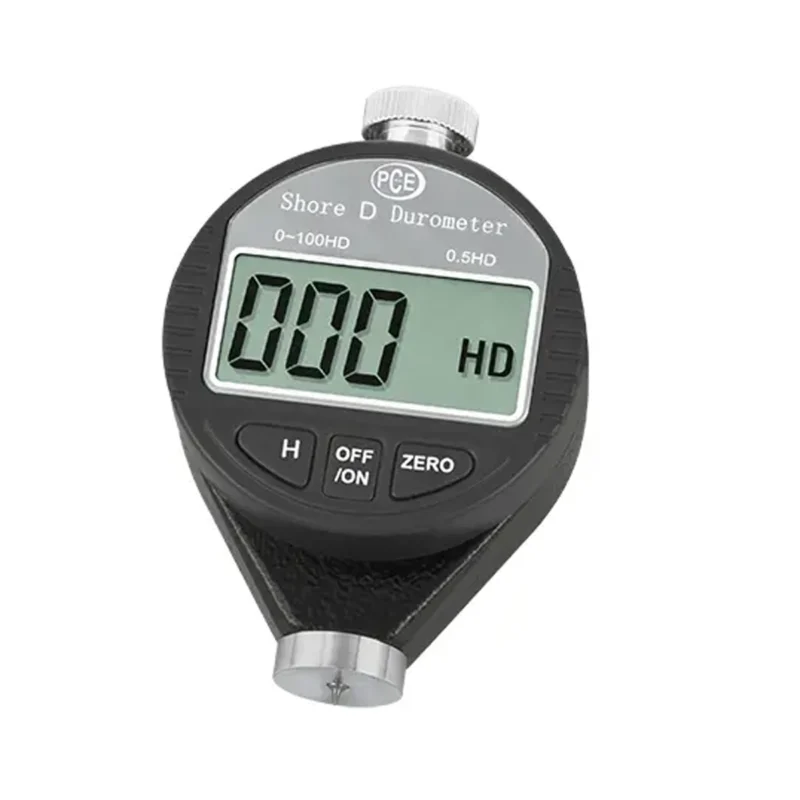

Durometer Shore D PCE-DD-D

,
PCE
Add to cart
Compare
Quick view
Add to wishlist

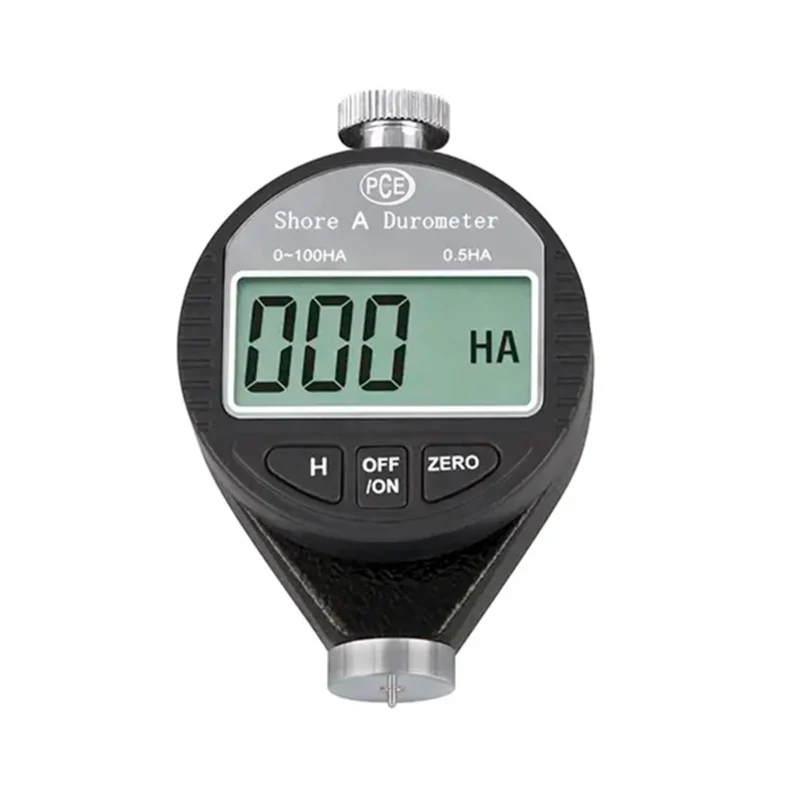

Durometer Shore A PCE-DD-A

,
PCE
Add to cart
Compare
Quick view
Add to wishlist

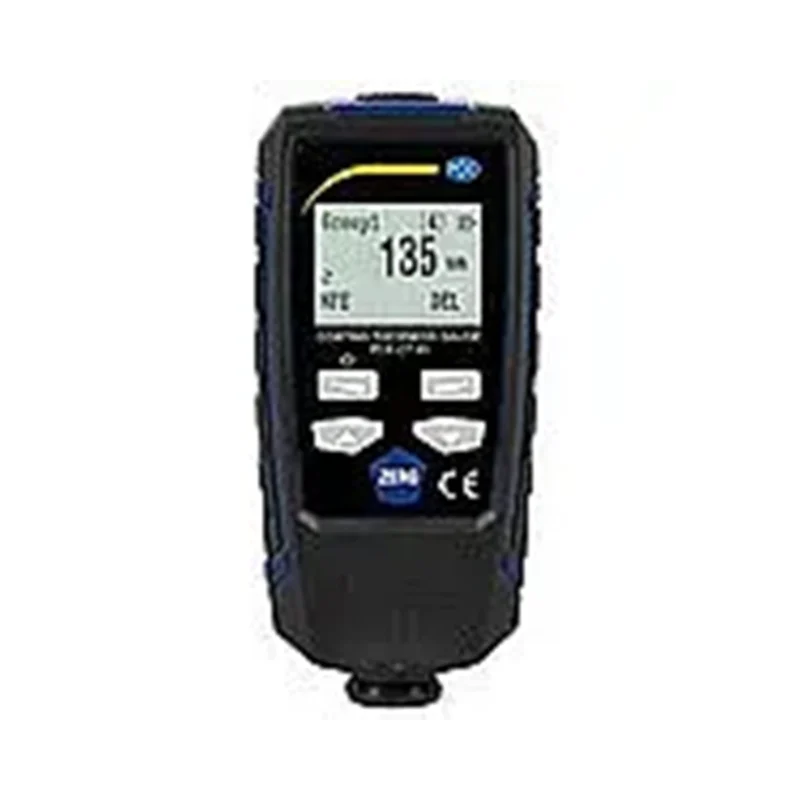

Coating Thickness Gauge PCE-CT 65

,
